Feature
Technical details
- Package Size 2120.00cm * 1120.00cm * 1360.00cm
- Package Gross Weight 900.000kg

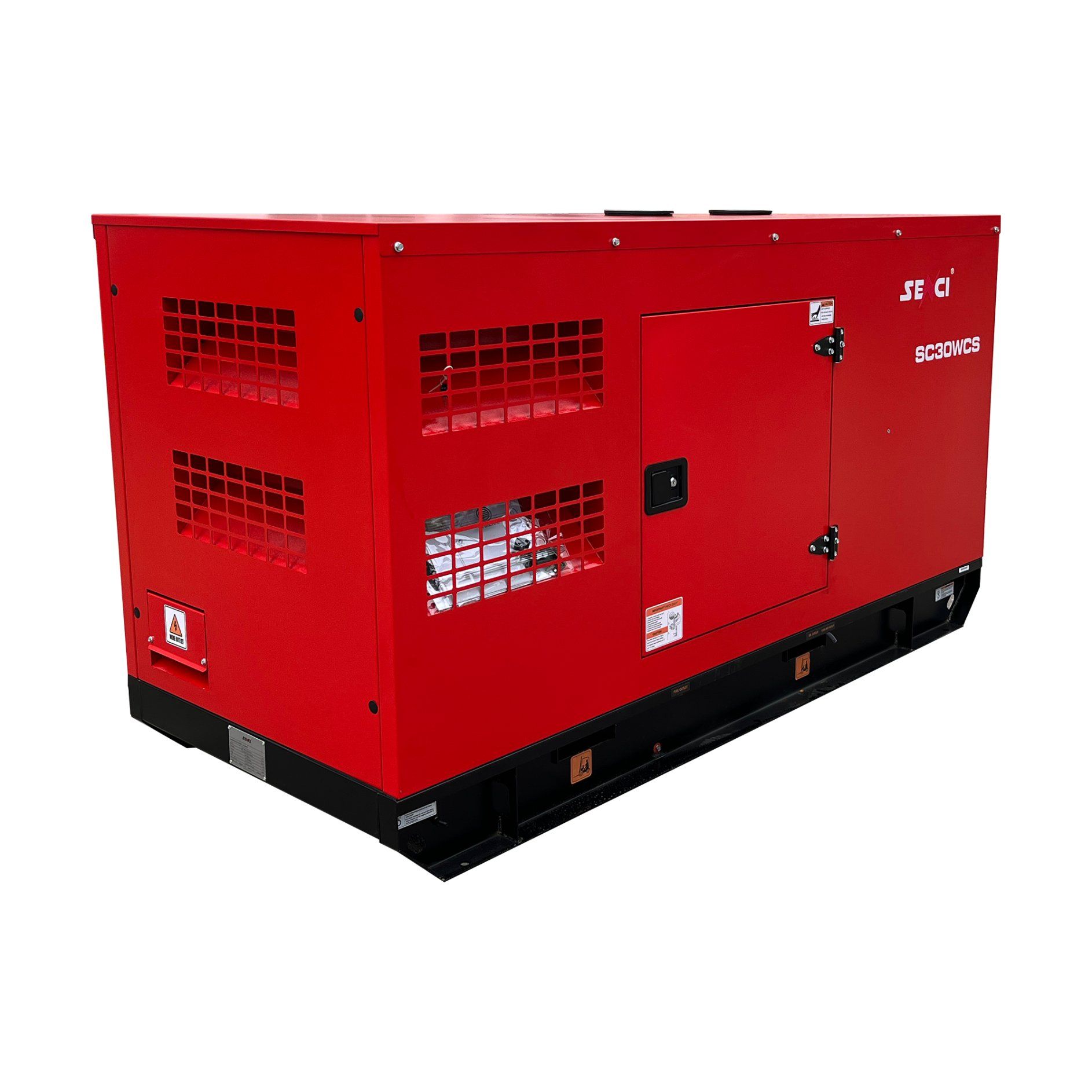

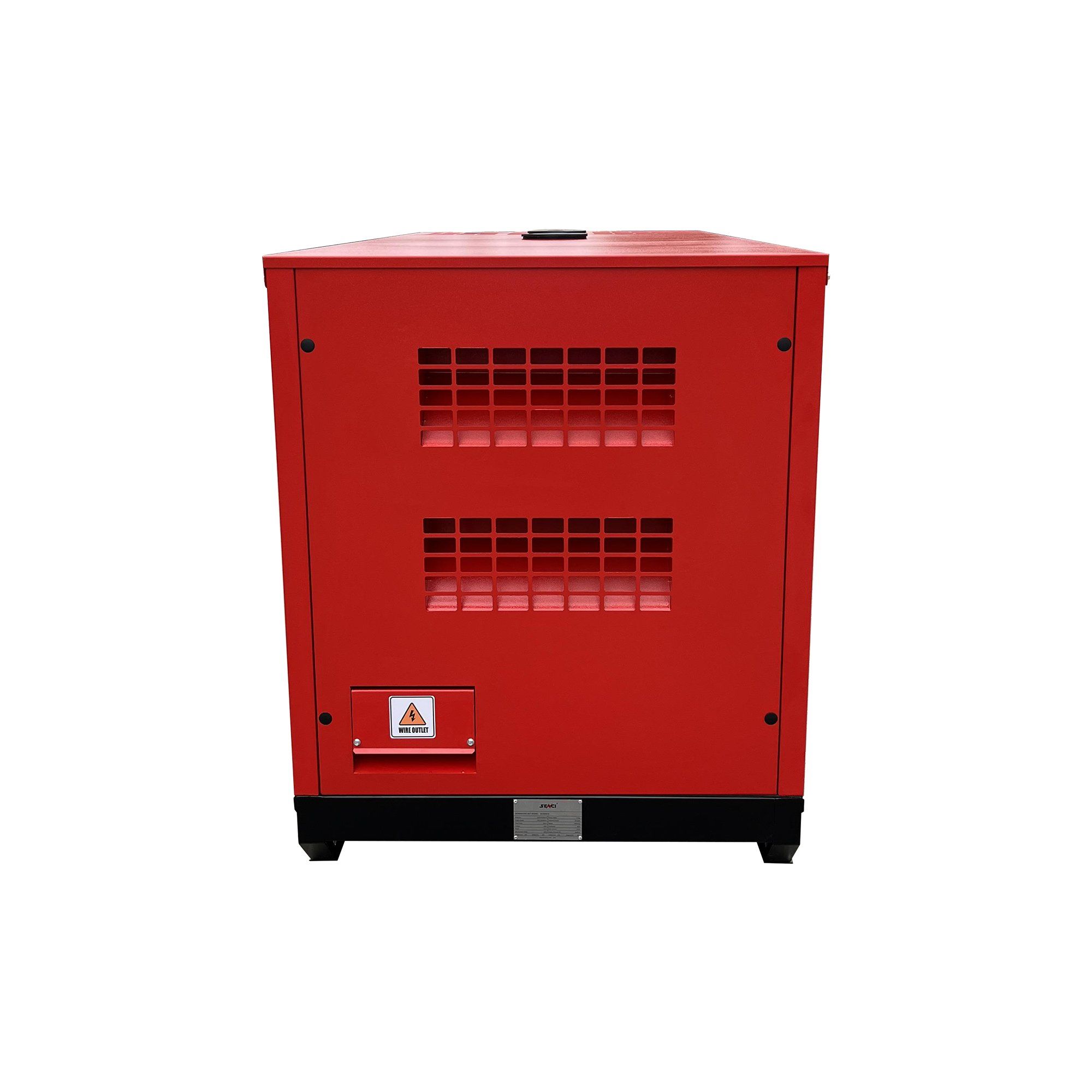

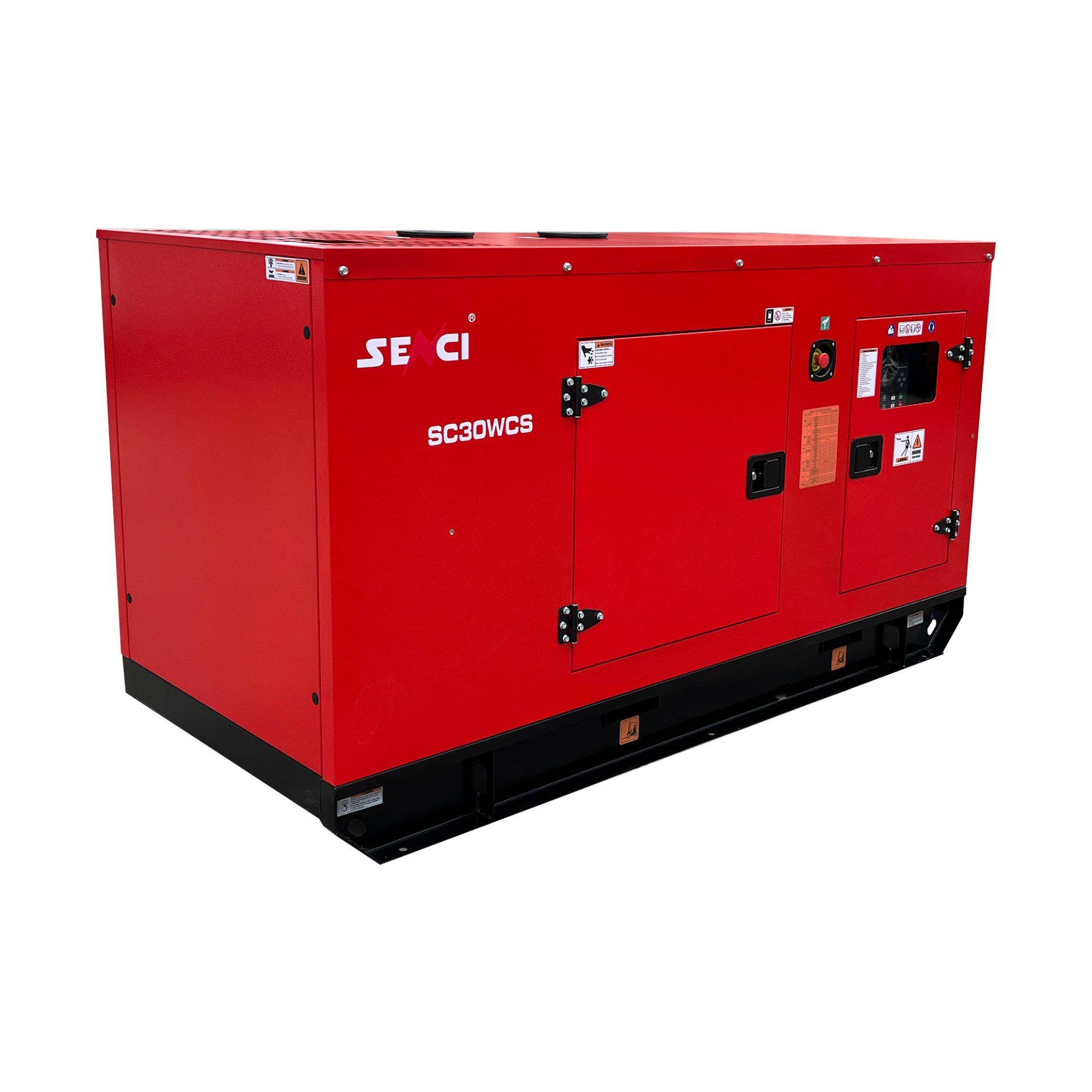

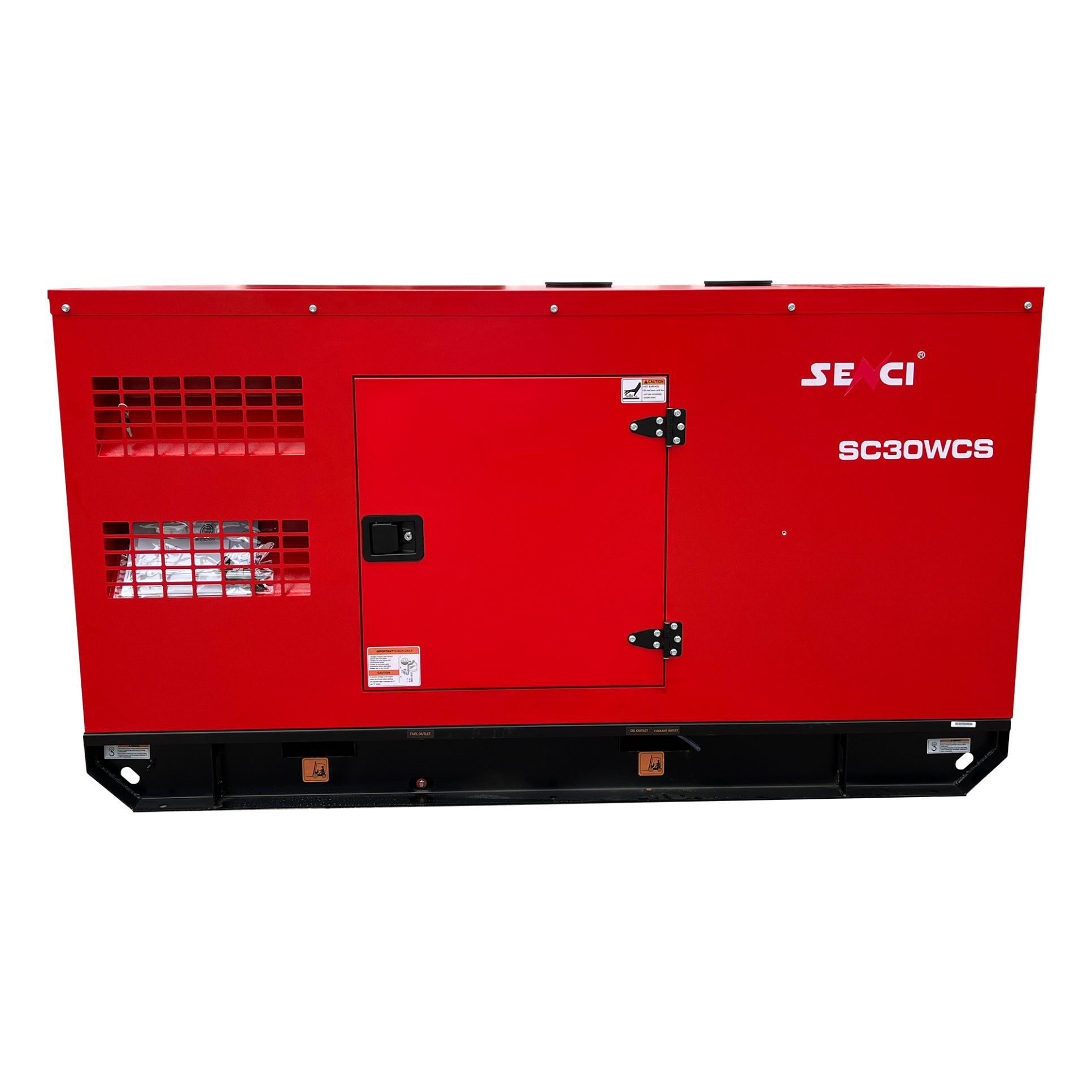

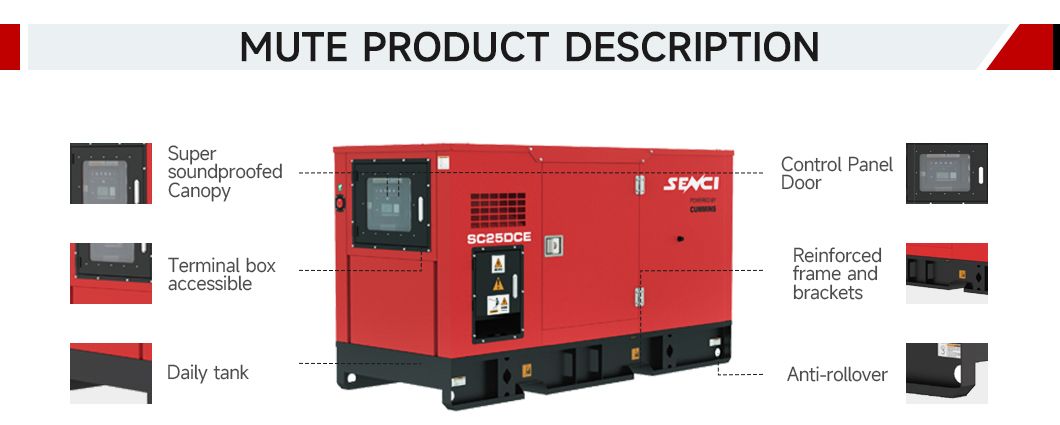

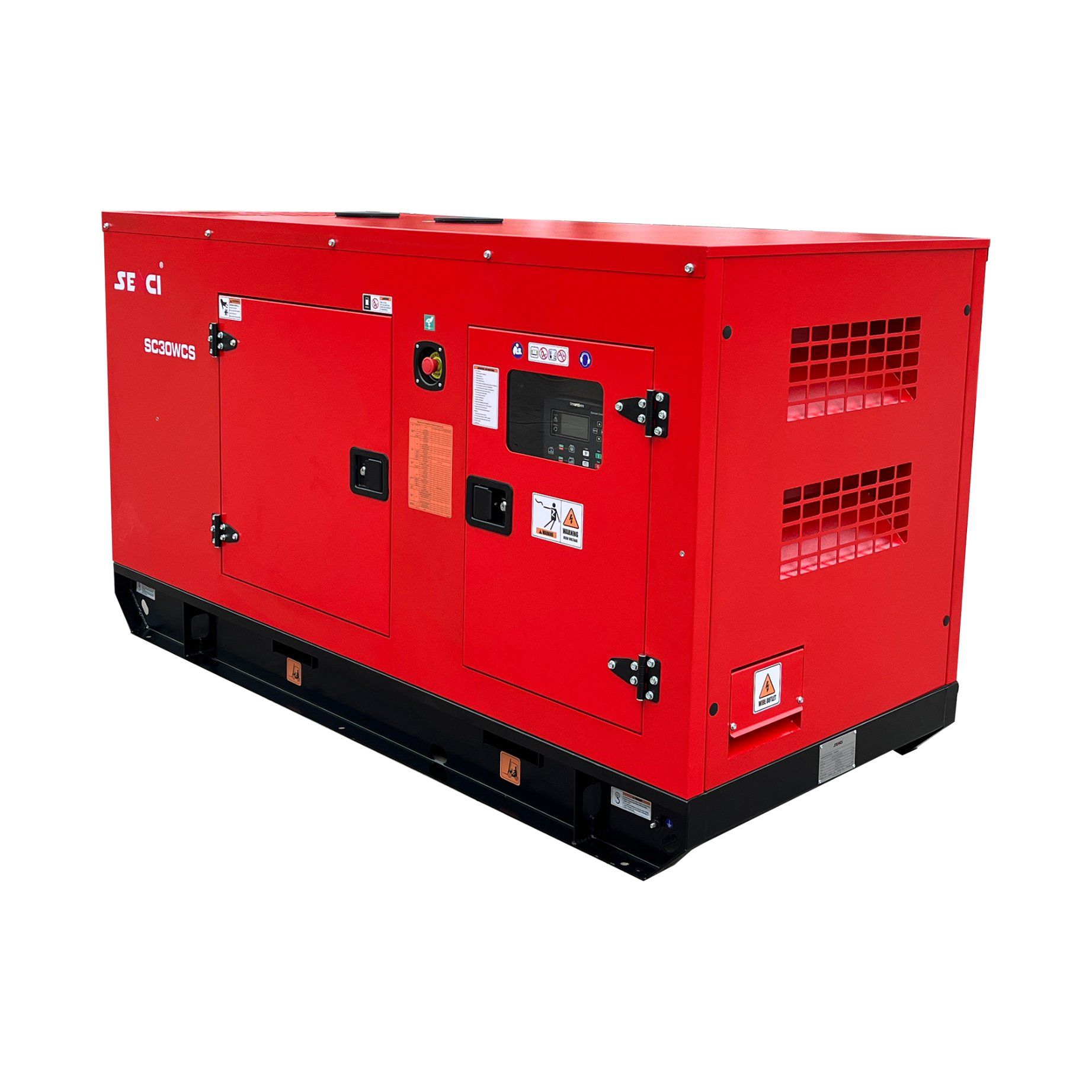

- Silent type unit Soundproof and weatherproof canopy
- The best powder coating with chemical surface treatment ensure corrosion resistance and coating quality.
- 5mm mute cotton and good exhaust system. Noise level ≤75dBA at 7 meters
- Forklift hole and lugs are mounted on the base frame.

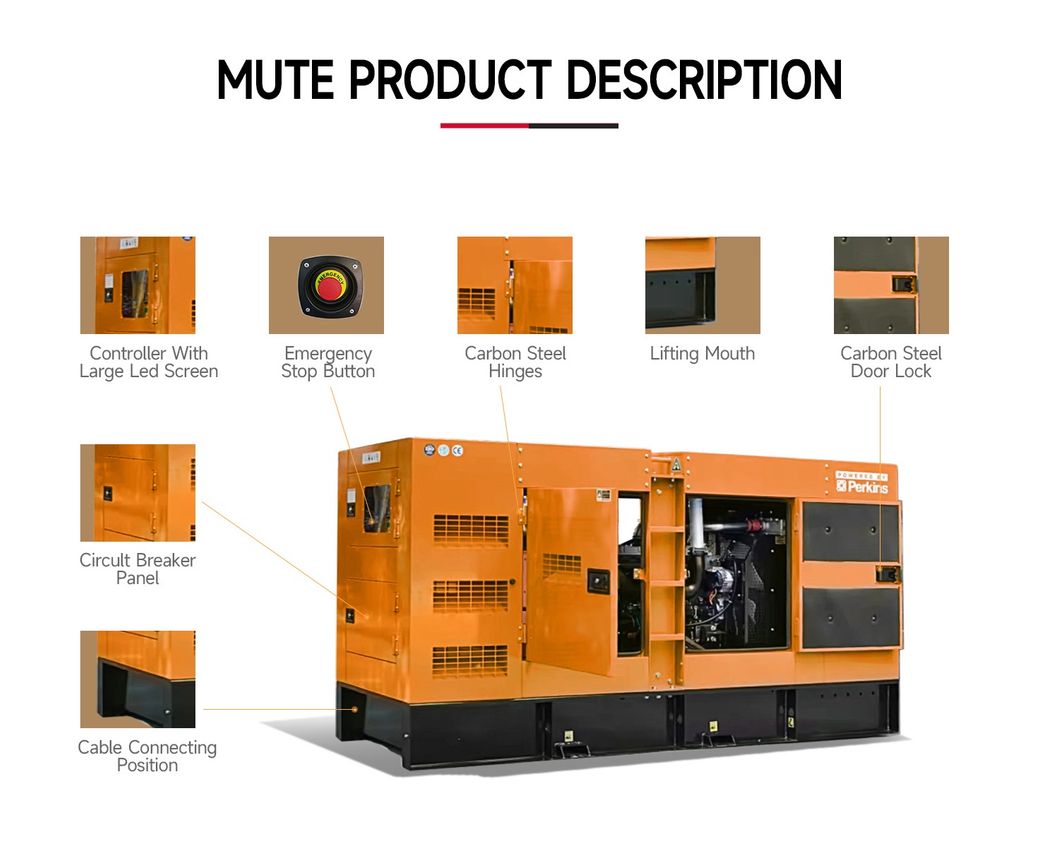

- Emergency stop button mounted on canopy to faciliate emergency operations.

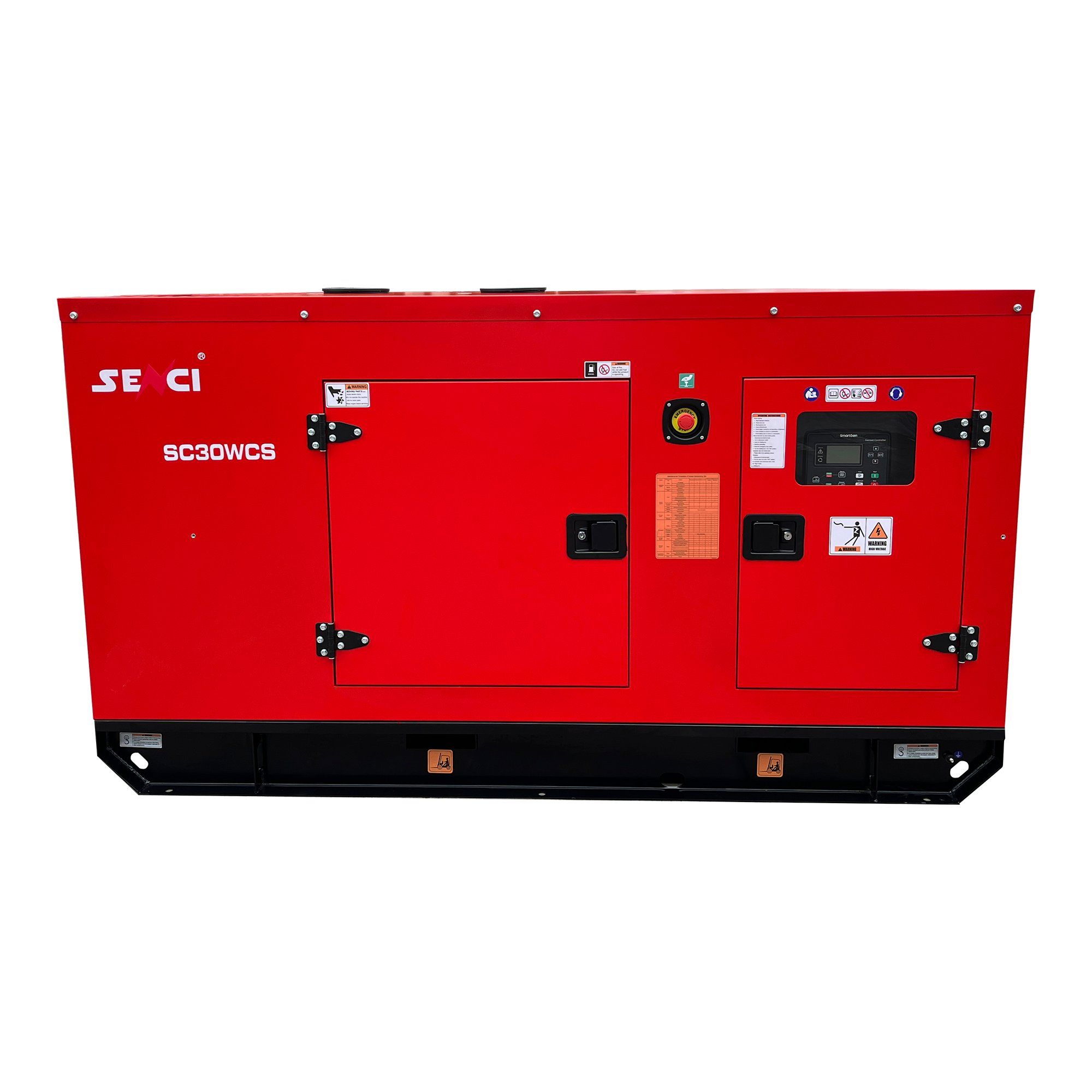

- Control panel viewing window allows users to monitor the control panel.
- Lubricant and coolant drain are installed for convenient replacement.
- TypeMicro-Computer Control Automatic Diesel Generator
- Installation MethodFixed
- StrokeFour Stroke
- Cooling MethodWater Cooling
- Output TypeAC Three Phase
- Conditions of UseLand Use
- UsageCommon Units
- Landuse Type of UnitLow Noise Automation Type
- Excitation ModeAC Rotating Exciter
- Specification2000*1000*1240
- Rated Frequency(Hz)50Hz/60Hz
- Rated Voltage(V)110 - 440
- Rated Power(kVA)18-3000kVA
- ControllerDeep Sea

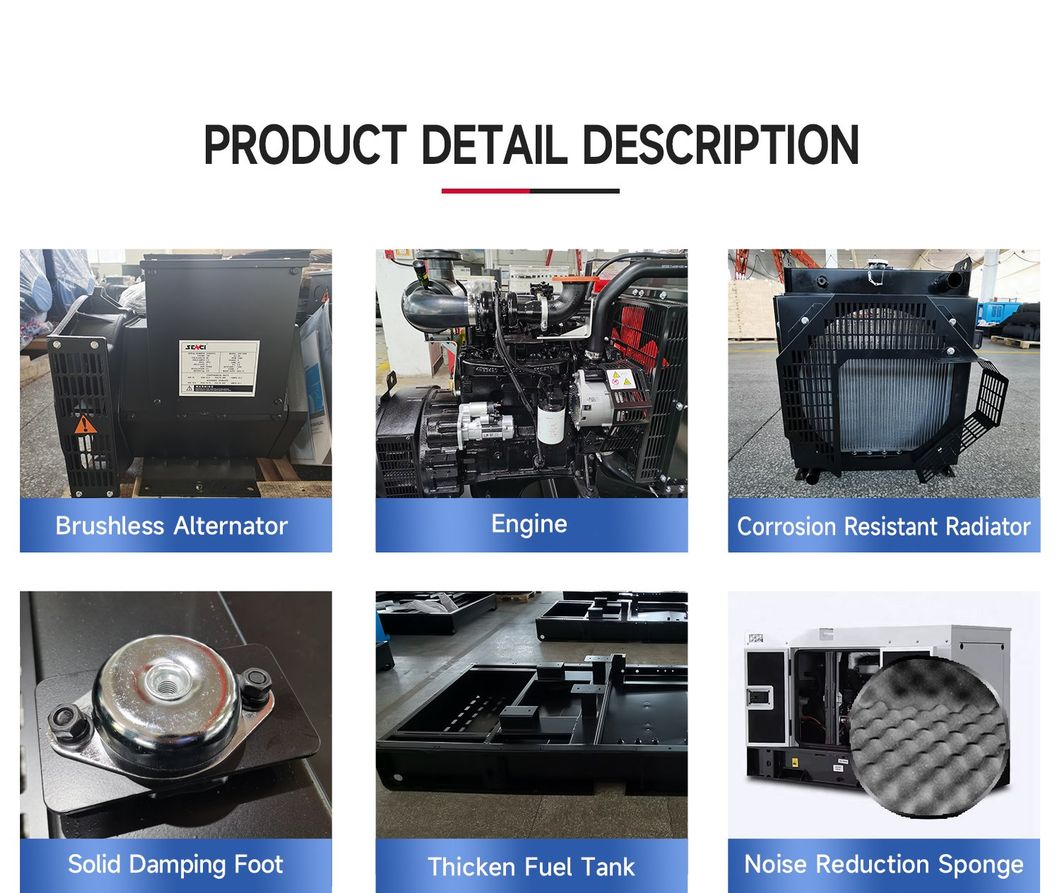

- AlternatorBrushless Alternator
- Certificate AvailableCE;ISO;OEM Authorization etc.
- OptionalATS
- Transport PackageWooden Packing
- Optional AC Alternator Brands STAMFORD;LEROY SOMER;SENCI;Marathon
- Optional Controller Brands SmartGen;DSE;MEBAY;ComAp
