Feature

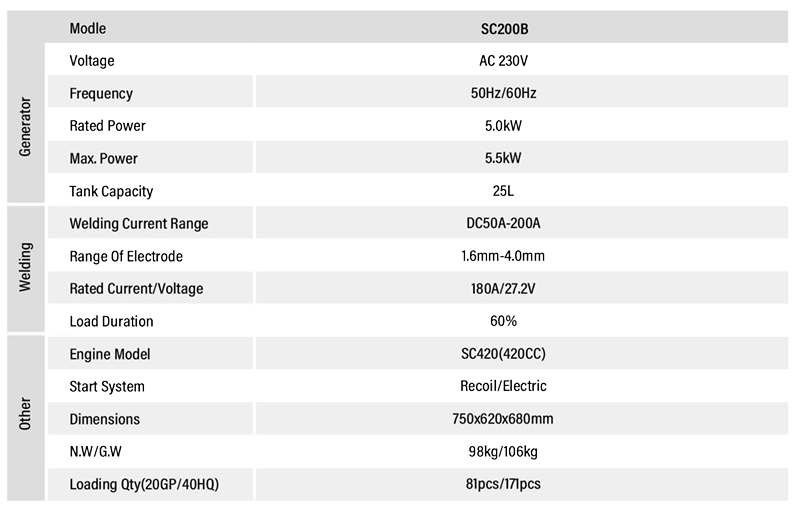

Technical details
- The rectification modeadopts MDS module ordiode rectification
- small current welding isnot easy to break the arc
- The voltage regulatorincreases arc stabilityeasy to arc
- multiple styles of appearancefor users to choose:
- Rated Duty Cycle 50%
- OCV(V) DC 50V
- Current range(A) DC50-200
- Welding rod 1.6-4.0mm
- Rated current(A) 180
- Auxiliary rated power output 5.0KW
- Engine model SC420
- Max.power/speed(RPM) 14HP/3600rpm
- Displacement(cc) 420cc
- Start method Recoil/Electric
- Fuel tank capacity(L) 25
- Protection class IP21
- Dimension(mm) 750x620x680
- Net weight(kg) 98
