Feature
Technical details
- IGBT rectifier
- Widely range of usage for 220/380V with 1 phase or 3 pahse
- Power welding current
- Output current/voltage double display
- Equal current output with diffrent input voltages
- Ultralight easy to carry
- Overall protection of chassis

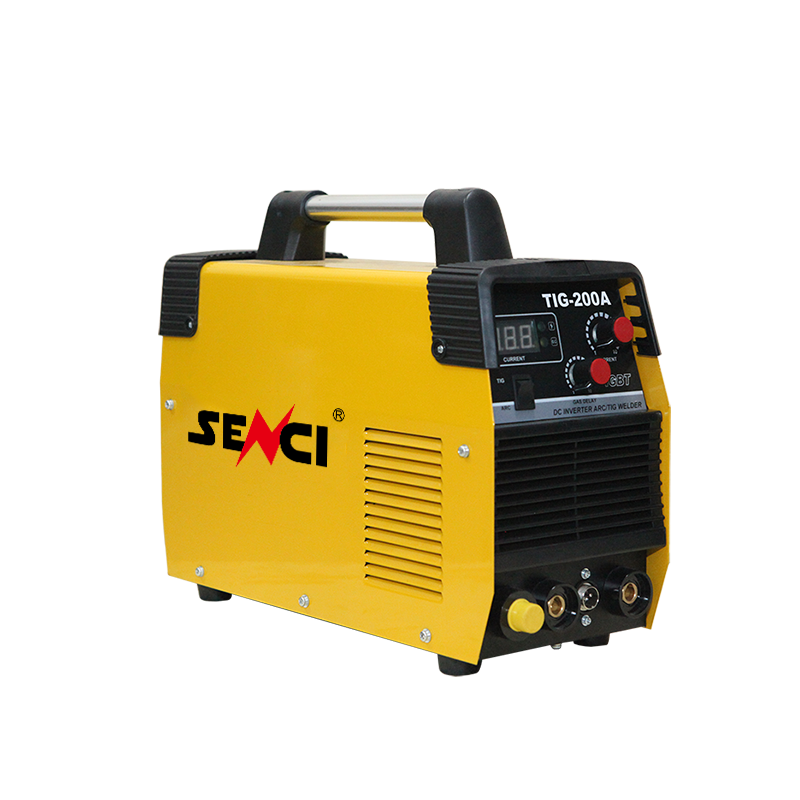

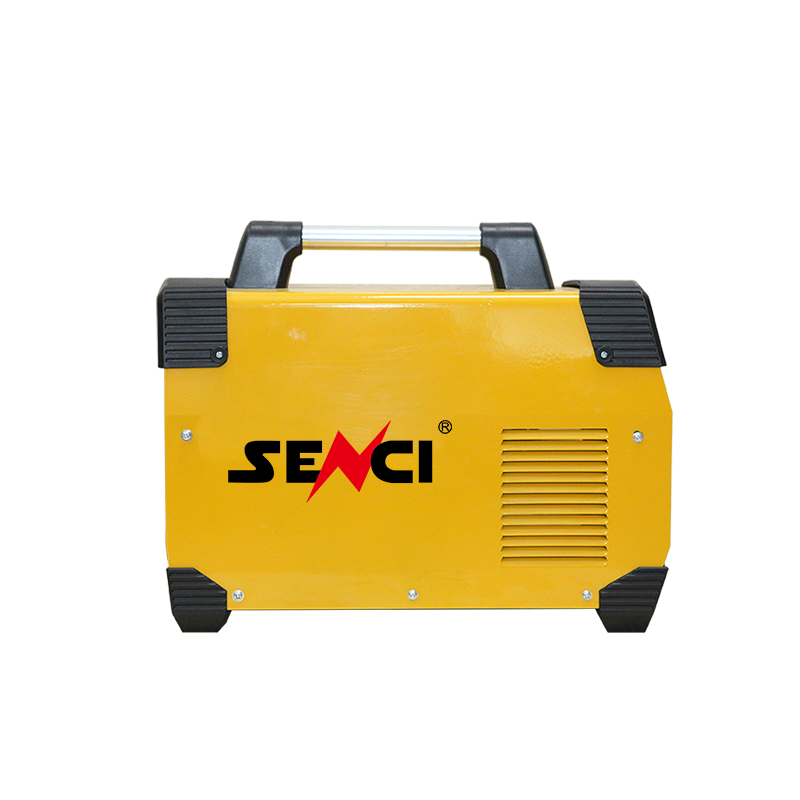

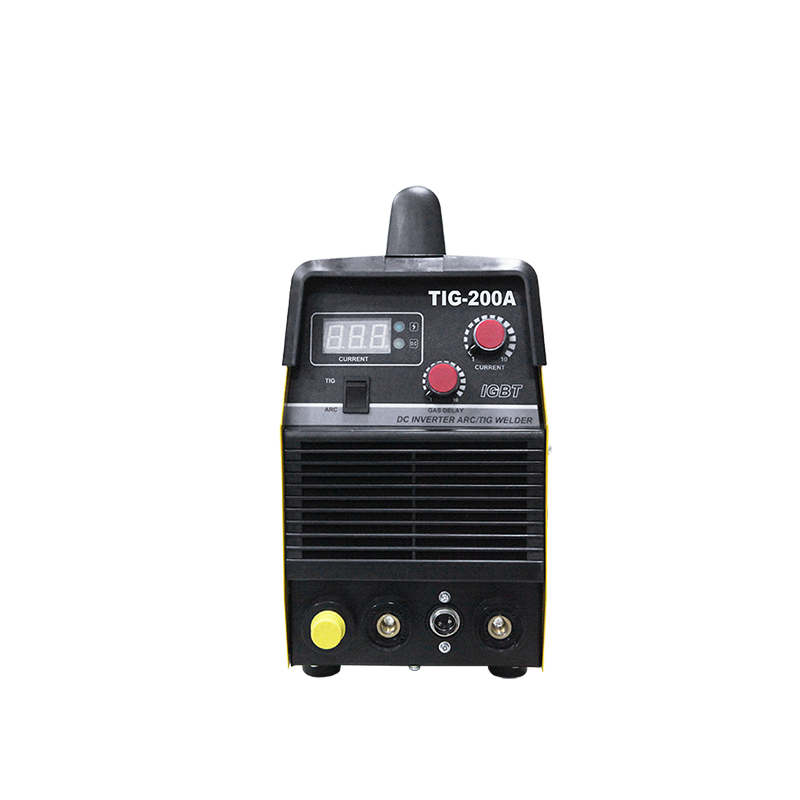

- ModelTIG200A
- Input PowerAC 220/380V
- Voltage Range120-560V
- Output Current Range(A)165(ARC)
- Duty Cycle(%)(@40℃40
- Insulation Class F
- Electrod(mm)1.6-4.0mm
- Protection ClassIP21S
- Weight(kg)9.5
- Dimension(mm)375*150*280
