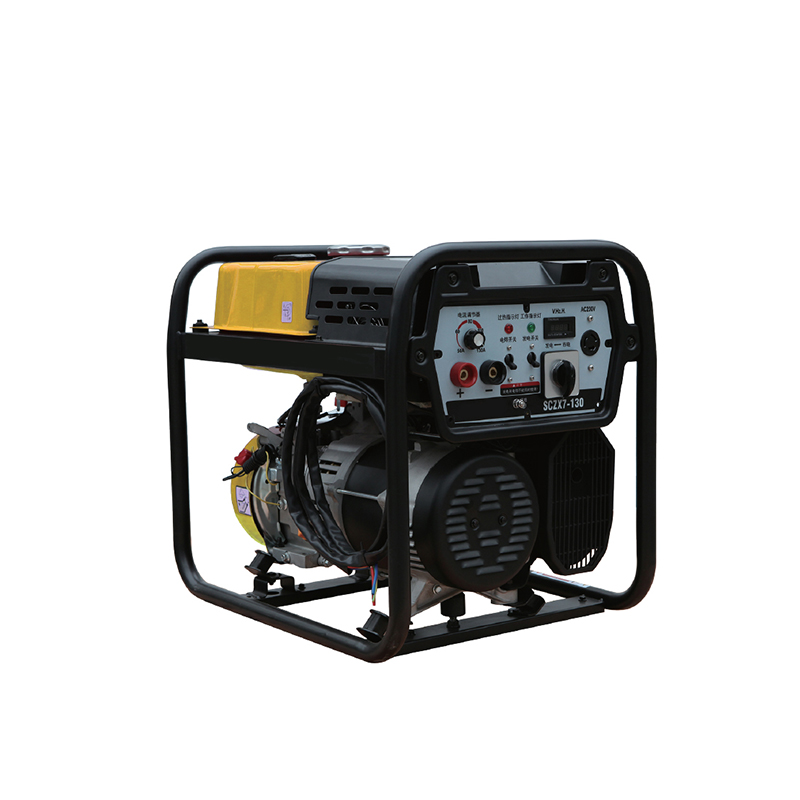

MULTI-FUNCTION WELDING GENERATOR SERIES WSI-130
Feature
Technical details
Can use city power for welding operation
AVR for control voltage
For DC welding and AC generator output
It combine engine driven welder and IGBT welder
Compact structure for easy move and transportation
It can welding 3.2mm electrode for long time
Can out put 3.2kw steadily.
Model
WSI-130
Rated duty cycle
35%
Open circuit voltage
75V
Welding current range
50-130A
Welding voltage range
22-25.2V
Welding rod
1.6-3.2mm
Rated current/voltage
120A/24.8V
Auxiliary rated power
3.2kW/AC 240V or 120V
Engine model
Petrol SV230
Max power/Speed
5.2kW/3600rpm
Petrol
223cc
Start method
Recoil
Fuel tank capacity
11.3L
Protection class
IP23
Whole set dimension
637*473*540mm
Net weight
55kg
